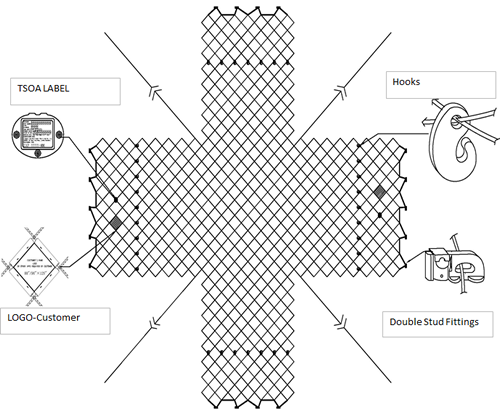

Pallet Nets-Knotless



Civil aviation standards:
CTSO/TSO-C90 Cargo Pallets, Nets and Containers (Unit Load Devices)
Technical standard:
SAE AS36100 Air Cargo Unit Load Devices-Performance Requirements and Test Parameters；
SAE AIR 1490B Environmental Degradation of Textiles

Flammability requirements:
CCAR-25，Appendix F, Part I, Paragraph (a)(2)(ⅳ)





TYPE Part No. Number and type of Double Stud Fittings Number of Hooks SIZE FOR PALLET Gross Weight/service load UL(Ultimate Load criteria) CTSOA FAA LODA IATA CODE
Knotless CTSO-C90c
NAS3610-2A1N XH-01W/118( )
XH-01W/96( )
XH-01W/88( )
XH-01W/64( )		 18 20 2235 ×3175 mm
88 × 125 in		 6804KG(15000lb) 169000N(38000lb) ■ □ NA
NAS3610-2M2N XH-02W/118( )
XH-02W/96( )
XH-02W/88( )
XH-02W/64( )		 18 24 2438 ×3175 mm
96 × 125 in		 6804KG(15000lb) 169000N(38000lb) ■ □ NM
NAS3610-2L3N XH-03W/88( )
XH-03W/64( )		 14 18 1534 ×3175 mm
60.4 × 125 in		 3175KG(7000lb) 87200N(19600lb) ■ □ NL
NAS3610-2K3N XH-04W/88( )
XH-04W/64( )		 12 12 1534 ×1562 mm
60.4 × 61.5 in		 1588KG(3500lb) 43600N(9800lb) ■ □ NK
NAS3610-2F1N XH-05W/86( )
XH-05W/96( )		 26 26 2438 ×2991 mm
96× 117.75 in		 5670KG(12500lb) 139000N(31250lb) ■ □ NF
NAS3610-2B6N XH-06W/86( ) 18 22 2235 ×2734 mm
88 × 108 in		 4536KG(10000lb) 147000N(33000lb) ■ □ NB
NAS3610-2E2N XH-07W/76( )
XH-07W/63( )		 18 18 1346 ×2235 mm
53 × 88 in		 1136KG(3500lb) 56000N(12600lb) ■ □ NE
Knotless CTSO-C90d
AS36100-2A7N/2M4N XH-11W/118( )
XH-11W/96( )
XH-11W/80( )
XH-11W/64( )		 18 32 2235/2438 ×3175 mm
88/96 × 125		 6804KG(15000lb) 169000N(38000lb) ■ ■ NA/NM
AS36100-2L5N XH-12W/90( )
XH-12W/64( )		 14 24 1534 ×3175 mm
60.4 × 125 in		 3175KG(7000lb) 87200N(19600lb) ■ □ NL
AS36100-2K4N XH-13W/90( )
XH-13W/64( )		 12 24 1534 ×1562 mm
60.4 × 61.5 in		 1588KG(3500lb) 43600N(9800lb) ■ □ NK
AS36100-2B7N XH-14W/80( ) 18 26 2235 ×2734 mm
88 × 108 in		 4536KG(10000lb) 147000N(33000lb) ■ □ NB
AS36100-2G1N XH-15W/118( )
XH-15W/96( )		 40 56 2438×6058 mm
96 × 238.5 in		 13608KG(30000lb) 278000N(62500lb) ■ ■ NG
AS36100-2R1N XH-16W/118( )
XH-16W/96( )		 36 48 2438 ×4978 mm
96 ×196 in		 11340KG(25000lb) 278000N(62500lb) ■ ■ NR
